Managing Optimizations

Definition

See the Glossary for a definition.

Context

This page lists all operations that can be performed on the Optimization object, see Glossary.

Concepts

Object structure

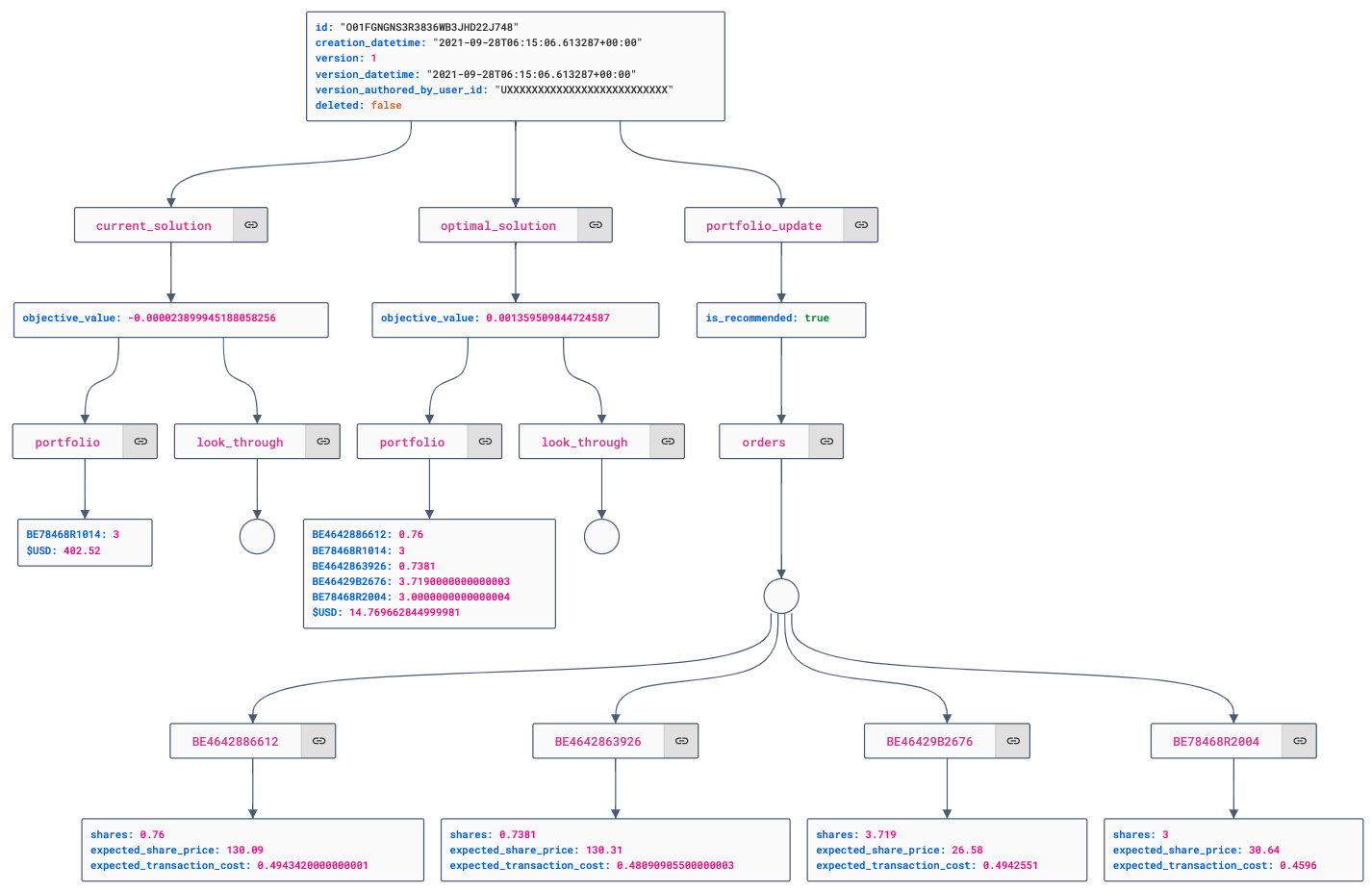

The following image shows the object structure:

  • Some metadata: id, version, ...
  • The assessment of the as-is Portfolio (current_solution) and the recommended Portfolio (optimal_solution)
  • The delta between the two, ie. what orders to place with the broker to get to the recommended Portfolio
  • Note that the look_through has been omitted in the image

alt

Create optimization

See the Rebalancing process to understand the triggers.

Get optimization

Calculation of an optimization takes between 5 seconds and a couple of minutes depending on the complexity of the referenced investment policy, and the compute resources made available to the system. When calculation is in process the server returns a 202 response. Else the server returns a 200, and an Optimization object.

Get the latest optimization of a portfolio

GET /portfolios/P01F8ZSNV0J45R9DFZ3D7D8C26F/optimizations/latest/ HTTP/1.1
Host: api.sandbox.investsuite.com
Content-Type: application/json
Authorization: Bearer {string}

202 Accepted
{
    "message": "Optimization is not available (yet). Could not get optimization for optimization_hash.",
    "details": "Entity 'None' (version=None) not found for tenant 'None'",
    "optimization_hash": "8b22a2d4bdd142c6dca4ead3da80b4e8"
}

200 OK
{
  "current_solution": {
    "objective_value": -2.3899945188058256e-05,
    "portfolio": {
      "BE78468R1014": 3,
      "$USD": 402.52
    },
    "look_through": {
      "asset_classes": {
        "alternatives": 0.0,
        "bonds": 1.0,
        "commodities": 0.0,
        "stocks": 0.0,
        "cash": 0.0
      },
      "regions": {
        "bonds": {
          "asia_pacific_developed": 0.0,
          "emerging": 0.0,
          "europe_developed": 0.0,
          "north_america": 1.0
        },
        "stocks": {
          "asia_pacific_developed": 0.0,
          "emerging": 0.0,
          "europe_developed": 0.0,
          "north_america": 0.0
        }
      },
      "bond_types": null,
      "sectors": {
        "basic_materials": 0.0,
        "consumer_cyclical": 0.0,
        "consumer_defensive": 0.0,
        "communication_services": 0.0,
        "energy": 0.0,
        "financial_services": 0.0,
        "healthcare": 0.0,
        "industrials": 0.0,
        "real_estate": 0.0,
        "technology": 0.0,
        "utilities": 0.0
      }
    }
  },
  "optimal_solution": {
    "objective_value": 0.001359509844724587,
    "portfolio": {
      "BE4642886612": 0.76,
      "BE78468R1014": 3,
      "BE4642863926": 0.7381,
      "BE46429B2676": 3.7190000000000003,
      "BE78468R2004": 3.0000000000000004,
      "$USD": 14.769662844999981
    },
    "look_through": {
      "asset_classes": {
        "alternatives": 0.0,
        "bonds": 0.7986485447656201,
        "commodities": 0.0,
        "stocks": 0.20135145523437992,
        "cash": 0.0
      },
      "regions": {
        "bonds": {
          "asia_pacific_developed": 0.0,
          "emerging": 0.0,
          "europe_developed": 0.0,
          "north_america": 1.0
        },
        "stocks": {
          "asia_pacific_developed": 0.09369676320272571,
          "emerging": 0.0,
          "europe_developed": 0.1799403747870528,
          "north_america": 0.7263628620102215
        }
      },
      "bond_types": null,
      "sectors": {
        "basic_materials": 0.046054619609495716,
        "consumer_cyclical": 0.13806308600212508,
        "consumer_defensive": 0.07094628258129534,
        "communication_services": 0.022473042495950425,
        "energy": 0.03446538322470511,
        "financial_services": 0.16124155877170626,
        "healthcare": 0.12224125679967916,
        "industrials": 0.11992341101283713,
        "real_estate": 0.0,
        "technology": 0.2563740870896863,
        "utilities": 0.02821727241251957
      }
    }
  },
  "portfolio_update": {
    "is_recommended": true,
    "orders": {
      "BE4642886612": {
        "shares": 0.76,
        "expected_share_price": 130.09,
        "expected_transaction_cost": 0.4943420000000001
      },
      "BE4642863926": {
        "shares": 0.7381,
        "expected_share_price": 130.31,
        "expected_transaction_cost": 0.48090905500000003
      },
      "BE46429B2676": {
        "shares": 3.719,
        "expected_share_price": 26.58,
        "expected_transaction_cost": 0.4942551
      },
      "BE78468R2004": {
        "shares": 3,
        "expected_share_price": 30.64,
        "expected_transaction_cost": 0.4596
      }
    }
  },
  "id": "O01FGNGNS3R3836WB3JHD22J748",
  "creation_datetime": "2021-09-28T06:15:06.613287+00:00",
  "version": 1,
  "version_datetime": "2021-09-28T06:15:06.613287+00:00",
  "version_authored_by_user_id": "UXXXXXXXXXXXXXXXXXXXXXXXXXX",
  "deleted": false
}

{
  "current_solution": {
    ...
  },
  "optimal_solution": {
    ...
  },
  "portfolio_update": {
    "is_recommended": false,
    "orders": {
    }
  },
  "id": "O01FGNGNS3R3836WB3JHD22J748",
  "creation_datetime": "2021-09-28T06:15:06.613287+00:00",
  "version": 1,
  "version_datetime": "2021-09-28T06:15:06.613287+00:00",
  "version_authored_by_user_id": "UXXXXXXXXXXXXXXXXXXXXXXXXXX",
  "deleted": false
}
Field Description Data type Example Required
id Optimization ID Unique ID for this portfolio. string ^O[0-9A-HJKMNP-TV-Z]{26}\Z O01FCB5EJQ9RWDK0SWRA17R87EN yes
{current|optimal_solution}->objective_value Objective Value describes the degree of optimality of the portfolio. Portfolio Optimizer tries to minimise the objective value. number 0.00665 yes
{current|optimal_solution}->holdings The holdings in the portfolio to be optimized, or in the optimal portfolio. object {"$USD":10000, "US0378331005": 20, "GB0005405286": 5} yes
{current|optimal_solution}->look_through The look through values of the portfolio before and after optimization. object yes
{current|optimal_solution}->portfolio_constraint_violations Percentage measure to indicate deviation from policy of the current and optimal solution. object yes
{current|optimal_solution}->benchmark_constraint_violations Percentage measure to indicate deviation from policy of the current and optimal solution. object no
portfolio_update->is_recommended Whether the portfolio update is recommended. True if there are reasons and applicable thresholds are passed, false otherwise. boolean TRUE yes
portfolio_update->orders->shares he number of shares to buy (if positive) or sell (if negative). number 20 yes
portfolio_update->orders->expected_share_price The share price at which the order is expected to be executed, expressed in the portfolio's base currency. number 100 yes
portfolio_update->orders->expected_transaction_cost The expected transaction cost for this order, expressed in the portfolio's base currency. number 2 yes
portfolio_update->reasons Reasons to update a portfolio object yes
portfolio_update->reasons->portfolio_update_constraint_id The portfolio update constraint that is satisfied. string max_portfolio_constraint_violation_pctpoints yes
portfolio_update->reasons->portfolio_update_constraint_value The value of the portfolio update constraint. number 0.9 yes
portfolio_update->reasons->portfolio_constraint_id The id of the corresponding portfolio constraint. string holdings.cash yes
creation_datetime The date and time the first version of the entity was created. date-time 2025-06-04T15:23:15.328252+00:0 yes

Share Price

The Orders part contains an expected_share_price and expected_transaction_cost. Since the Optimization process is inherently asynchronous, the share price may fluctuate.

We therefore recommend to include an Optimizer Policy that always hold a small percentage in cash, to cover price fluctuations.

Do explicitly check the price difference in the middleware.

Should the price difference be to great, or insufficient cash be available (due to bigger than expected price difference), update the Transaction with a NOT_EXECUTED movement.

Quantity type

The portfolio_update section within an optimisation object can be configured on client level to return the quantity of instruments that need to be bought or sold in either UNITS or in AMOUNT:

  • UNITS (default): for each instrument the quantity is set in units to be bought or sold.

  • AMOUNT: for each instrument the quantity is set as an amount to be bought or sold EXCEPT when the position should be sold entirely. In that case, the quantity type for that position will be delivered in UNITS.

{
    "id": "P01F8ZSNV0J45R9DFZ3D7D8C26F",

    ...

    "portfolio_update":
    {
        "is_recommended": true,
        "orders":
        {
            "IE00B44Z5B48": // Buy 5 units IE00B44Z5B48
            {
                "quantity_type": "UNITS",
                "quantity": 5,
                "shares": 5,
                "expected_share_price": 123.45,
                "expected_transaction_cost": 25
            },
            "LU0378818131": // Partial or full sell LU0378818131
            {
                "quantity_type": "UNITS",
                "quantity": -8,
                "shares": -8,
                "expected_share_price": 54.32,
                "expected_transaction_cost": 35
            }

        }
    }
}

{
    "id": "P01F8ZSNV0J45R9DFZ3D7D8C26F",

    ...

    "portfolio_update":
    {
        "is_recommended": true,
        "orders":
        {
            "IE00B44Z5B48": // Buy
            {
                "quantity_type": "AMOUNT",
                "quantity": 617.25,
                "shares": 5,
                "expected_share_price": 123.45,
                "expected_transaction_cost": 25
            },
            "LU0378818131": // Partial Sell
            {
                "quantity_type": "AMOUNT",
                "quantity": -434.56,
                "shares": -8,
                "expected_share_price": 54.32,
                "expected_transaction_cost": 35
            },
            "LU0378818131": // Full Sell
            {
                "quantity_type": "UNITS",
                "quantity": -11,
                "shares": -11,
                "expected_share_price": 54.32,
                "expected_transaction_cost": 35
            }
        }
    }
}
